IP55 IK08 GB/T AC Charging Cable Single & Dual Gun 16A 32A for Southeast Asia Latin America Russia EV Charging

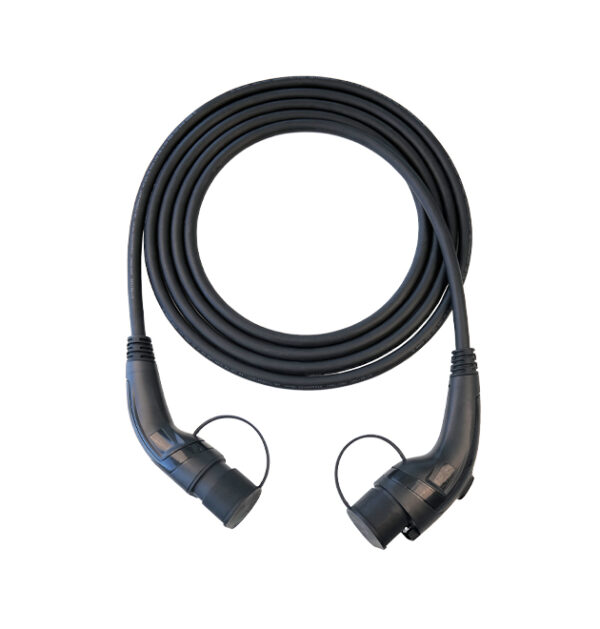

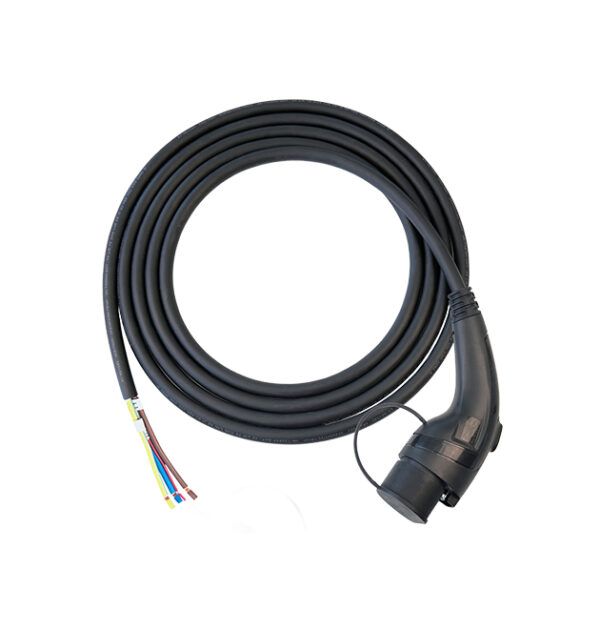

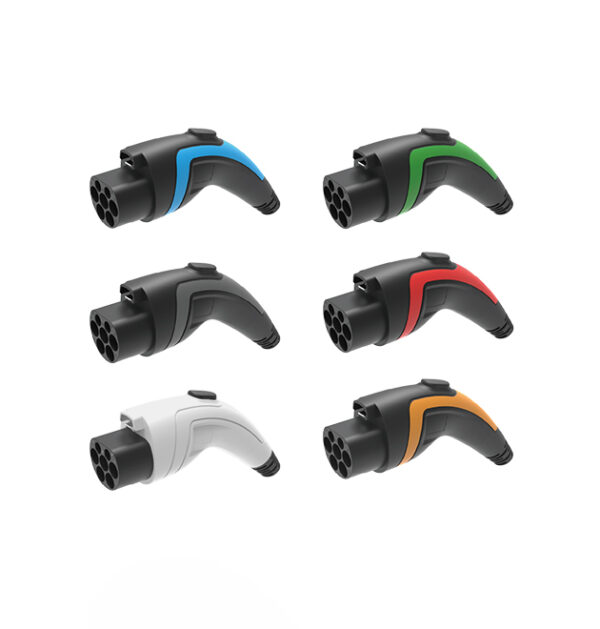

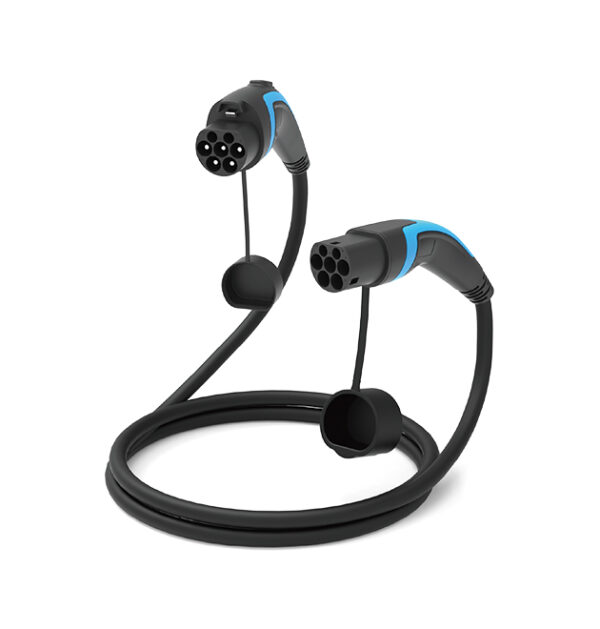

Standard GB/T AC charging cable featured with IP55 waterproof, dustproof and IK08 impact resistance, available in single gun and dual gun types. Supports 16A and 32A AC charging, perfectly matching Chinese-brand new energy vehicles exported to Southeast Asia, Latin America, Russia, Middle East and Australia. Factory wholesale and customized services provide stable charging solutions for global EV dealers and charging station contractors.
| Dual Guns Parameters | |||
| Specification | Current | Voltage | Cable Specification |
| AG-GBAC-IECIIb-32P | 32A | 250V | 3*6mm²+2*0.5mm² |
| AG-GBAC-IECIIb-32P-3 | 32A | 440V | 5*6mm²+2*0.5mm² |
| Mechanical Properties | Electrical Performance | ||
| Mechanical Life | No-load Plug>10000 times | Insulation Resistance | >1000MΩ(DC500V) |
| Impact of External Force | 1M Drop and 2T Vehicle Run Over | Pins Temperature Rise | <50K |
| Flame Retardant Grade | UL94V-0 | Withstand Voltage | 2500V |
| Operating Temperature | -30℃-+50℃ | Contact Impedance | 0.5MΩ MAX |
| Protection | IP55 IK08 | ||
| Insertion Force | <100N | ||
| Type2-GB/T EV Charging Cable | Customization | ||
| Current | 32A | Cable Length | yes |
| Voltage | 250V/440V | Cable Color | yes |
| Charging Standard | IEC 62196-2,GB/T 20234.2 | Plug Color | yes |
| Certificate | TUV,CE,RoHS | Logo Printing | yes |
| Single Gun Parameters | |||
| Specification | Current | Voltage | Cable Specification |
| AG-GBAC-C16P | 10/16A | 250V | 3*2.5mm²+2*0.75mm² |
| AG-GBAC-C32P | 32A | 250V | 3*6mm²+1*0.75mm² |
| AG-GBAC-C16P-3 | 16A | 440V | 5*2.5mm²+1*0.75mm² |
| AG-GBAC-C32P-3 | 32A | 440V | 5*6mm²+2*0.5mm² |
| Mechanical Properties | Electrical Performance | ||
| Mechanical Life | No-load Plug>10000 times | Insulation Resistance | >1000MΩ(DC500V) |
| Impact of External Force | 1M Drop and 2T Vehicle Run Over | Pins Temperature Rise | <50K |
| Flame Retardant Grade | UL94V-0 | Withstand Voltage | 2500V |
| Operating Temperature | -30℃-+50℃ | Contact Impedance | 0.5MΩ MAX |
| Protection | IP55 IK08 | ||
| Insertion Force | <100N | ||
| GB/T AC Charging Plug | Customization | ||
| Current | 10A/16A/32A | Cable Length | yes |
| Voltage |
250V/440V | Cable Color | yes |
| Charging Standard | GB/T 20234.2-2023 | Plug Color | yes |
| Certificate | RoHS | Logo Printing | yes |
